DERTUTU DM03

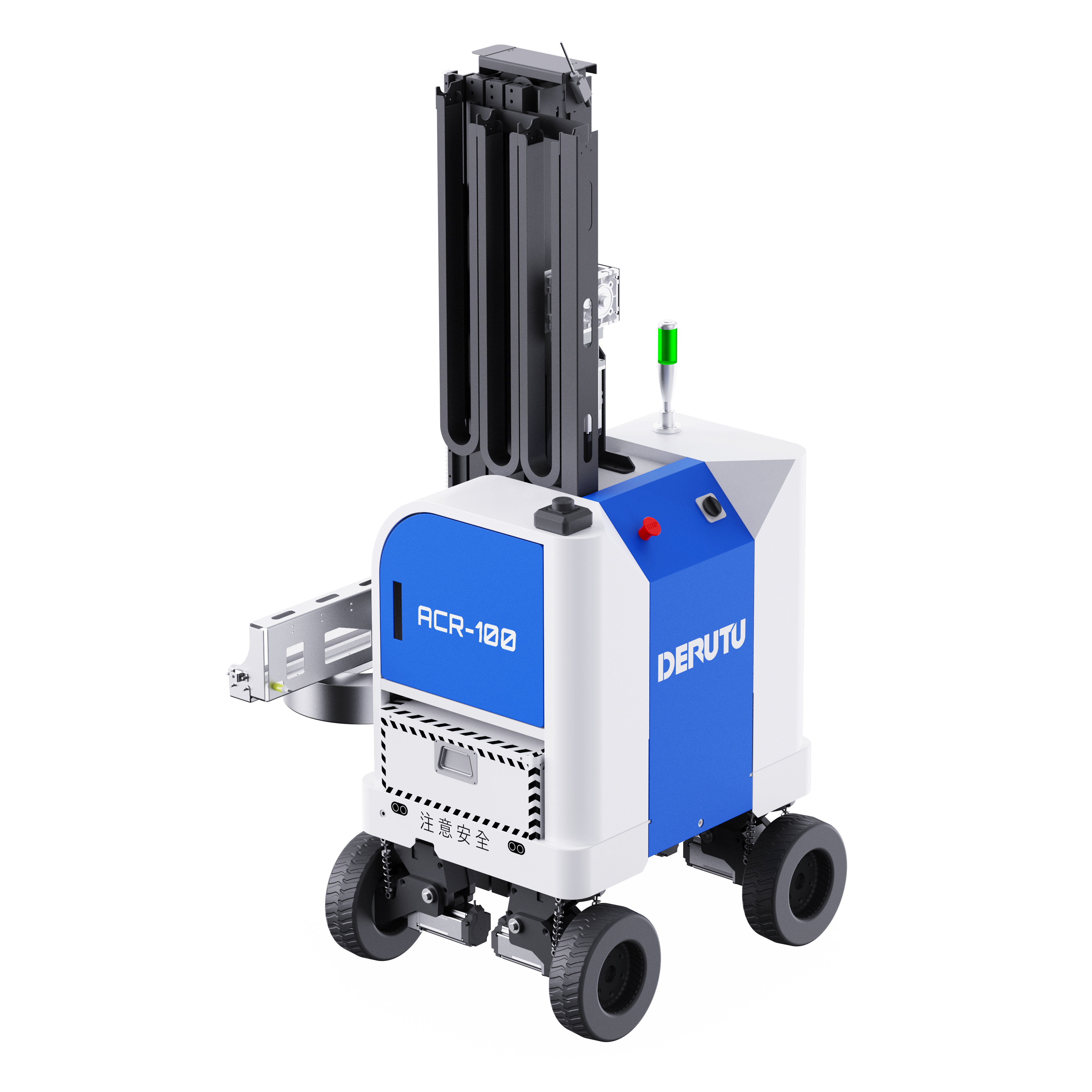

Automatic Coating Robot--DM-ACR-100

1. Automatic mapping, autonomous path‑planning, independent operation, one‑key completion

2. Cross-platform data interoperability and visual operations

3. Excellent obstacle‑surmounting and obstacle‑avoiding performance, suitable for complex ground conditions

4. Working height up to 5.7 m, no hollowing on wall surfaces

5. User‑friendly human‑machine interaction, simple and easy‑to‑understand operation

PDF GET A QUOTE ORDER MEETING ONLINE

Start from $58500.00

DM-ACR-100 is equipped by SLAM laser navigation, and enables autonomous route planning, obstacle avoidance, and intelligent operation.Its self-developed AGV chassis provides excellent mobility on complex surfaces, such as muddy and sandy terrain, while the patented frictionless steering compensation system protects delicate floors, like epoxy primer surfaces.Connected with smart construction systems, it delivers real-time construction data. Unmanned spraying operation delivers uniform, dense, and adjustable spraying with strong adhesion and no hollowing issues. DM-ACR-100 completes full-area plastering within a 5.7 m working height for cement, gypsum, polymer mortar, and more.It redefines the efficiency and quality limits of mechanized plastering with intelligent technology.

Cement Mortar、Finished Mortar、Self-mixing Mortar、Lime Mortar、Clay Motor、Light or Heavy Gypsum、Thick fire prevention、Vitrified microbeads insulation particles、Elastic coating、 Real stone paint、 Water in water、 Water in sand

WE BUILD AUTO PLASTERING TO KEEP UP WITH YOU

Hey, I’ve saved you the 80-yuan admission fee for the BMW exhibition!

Get free tickets to bauma CHINA in Shanghai by using the exclusive invitation from Deruitu—available until November 21!After the 22nd, on-site registration is r......

No more climbing scaffolding for the most dangerous task on the construction site.

Just imagine: several plasterers standing on a 4-meter-high scaffold, trying to apply material and smooth it out while the platform wobbles beneath their feet—m......

5 Days to Go! Derutu Cordially Invites You to the Shougang Housing Expo.

From October 15 to 17, the 23rd China International Housing Industry & Building Industrialization Products and Equipment Expo (China Housing Expo) will be g......

COMPARISON CHART: AUTOMATIC VS. MANUAL LABOR

Listed are the typical plaster steps with an equipment solution over hand application.

Task

Type of Equipment

By Hand

(sqm/person/day)

Using Equipment

(sqm/person/day)

Plastering plaster

DM Plastering Machine

600

Applying plaster

DM-MIX

800

Mix plaster

S60

800

Priming for finish coat

D836

200

2000

Finish coat application

Mortar texture sprayer

200

1000
